Color Filter 투과측정
- 작성자 관리자
- 조회수 518
2022-12-21 12:05:41
 |
 |
| ■ Measurement Item |
| - LCD Color Filter Transmittance Measurement - LCD Color Filter Color Coordinates (CIE x, y, UCS u’v’) Analysis - Spectral Range(300~1000nm), 0.96nm Resolution Accuracy L(λ) ± 0.5, CIE x,y ±0.0005 - Measurement Point : 1 Point, Multi Step - Measurement Tact Time : 1 Point measure ≒ 1 sec - 1 Channel Fixed measurement |
| ■ Application |
| - LCD Color Filter, Film |

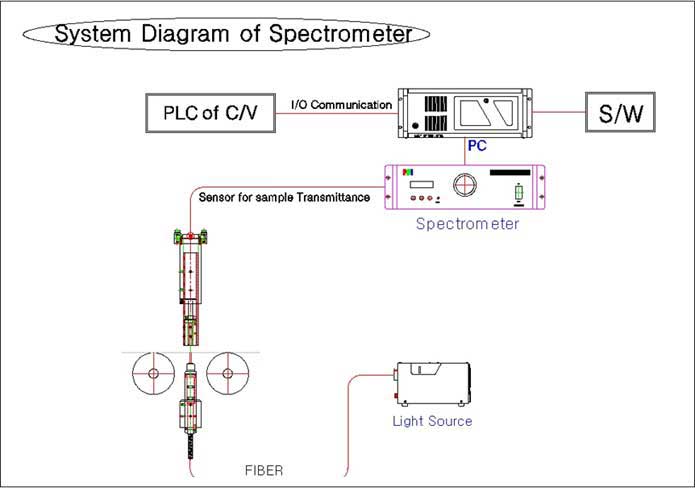

| ■ System Configuration |
| - Spectrometer(DARSA-5200) - S/W : DarsaPro70, DarsaRGB - Linear Stage - Computer Control System - TCP/IP & RS-232 Interface Communication - Interface & Communication function for other device link |

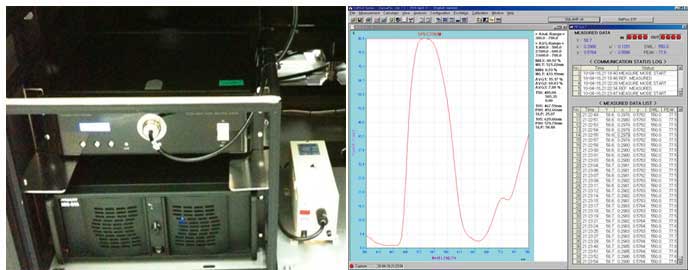

| ■ Detail |
 |
