Macro-Multi type
  • 작성자 관리자
  • 조회수 471
2022-12-21 13:13:09

■   Measurement Item
- LCD Color Filter Transmittance Measurement

- LCD Color Filter Color Coordinates (CIE x, y, UCS u’v’) Analysis

- Spectral Range(300~1000nm), 0.96nm Resolution
  Accuracy L(λ) ± 0.5, CIE x,y ±0.0005

- Measurement Point : Multi-Point, Multi-Step

- Measurement Tact Time : 1 Point measure ≒ 1 sec

- Multi-Channel Fixed measurement

■   Application
- LCD Color Filter

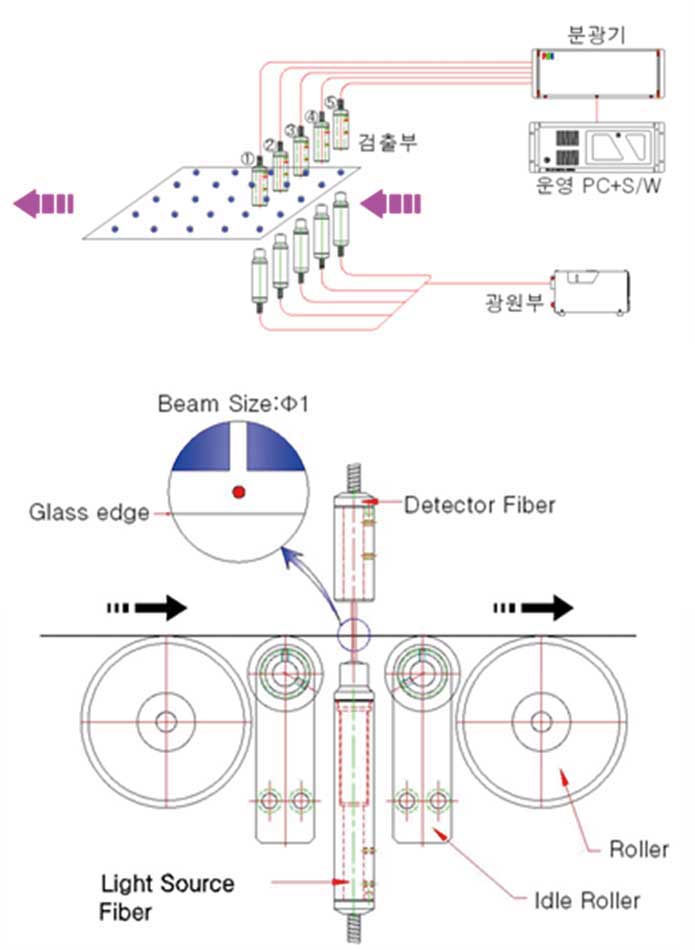

■   System Configuration

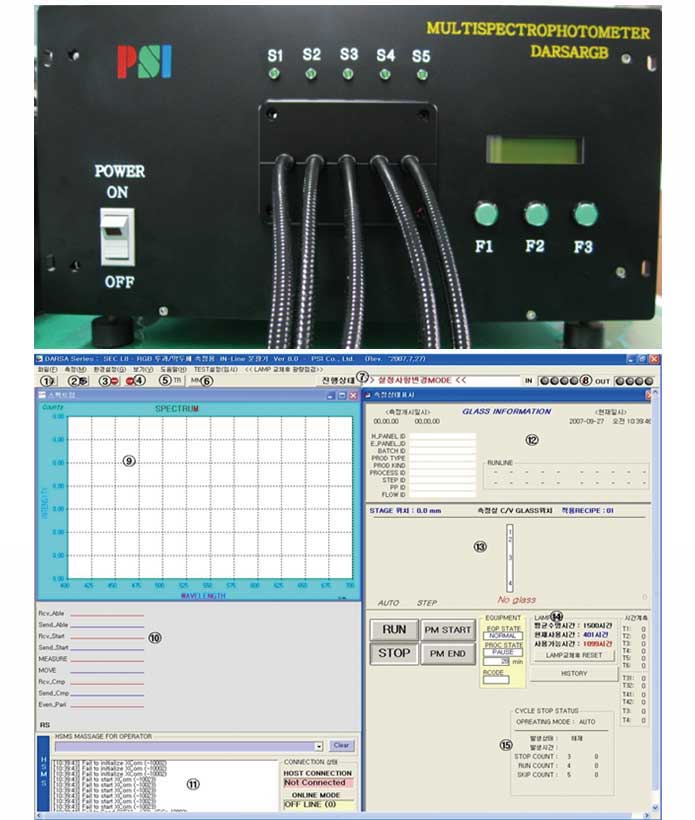

- Spectrometer(DARSA-RGB)

- S/W : DarsaPro70, DarsaRGB

- Computer Control System

- TCP/IP & RS-232 Interface Communication

- Interface & Communication function for other device link

■   Detail
