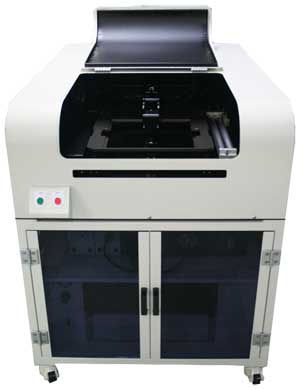

Filter 자동측정장치
- 작성자 관리자
- 조회수 521
2022-12-21 13:25:06
 | |
| ■ Measurement Item |  |
| - IR Filter Transmittance - Transmittance Spectrum Graph - T(Avr), min.wavelegth/T, T50, Max.wavelength/T | |
| ■ Application | |
| - Mobile Phone Lens IR-Filter - C/F Filter - Thin Film | |
| ■ System Configuration | |

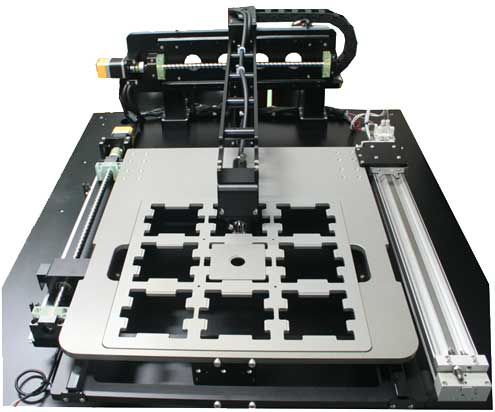

| - Spectrometer(DARSA-5200), Intergrating sphrer(50mm) - Light Source : Tungsten Halogen Lamp with White balance Filter - Optical Collimation Unit(Lenses / Pinhole : Beamsize 2~3mm) - Sample Tray : 80×80mm×4EA, 150×150mm×1EA 127×127mm×4EA, 76×76mm×9EA - XY-Servo Motor Motion Stage - S/W : DarsaPro70, Darsa - Interface & Communication function for other device link | |
| ■ Detail | |
 | |
